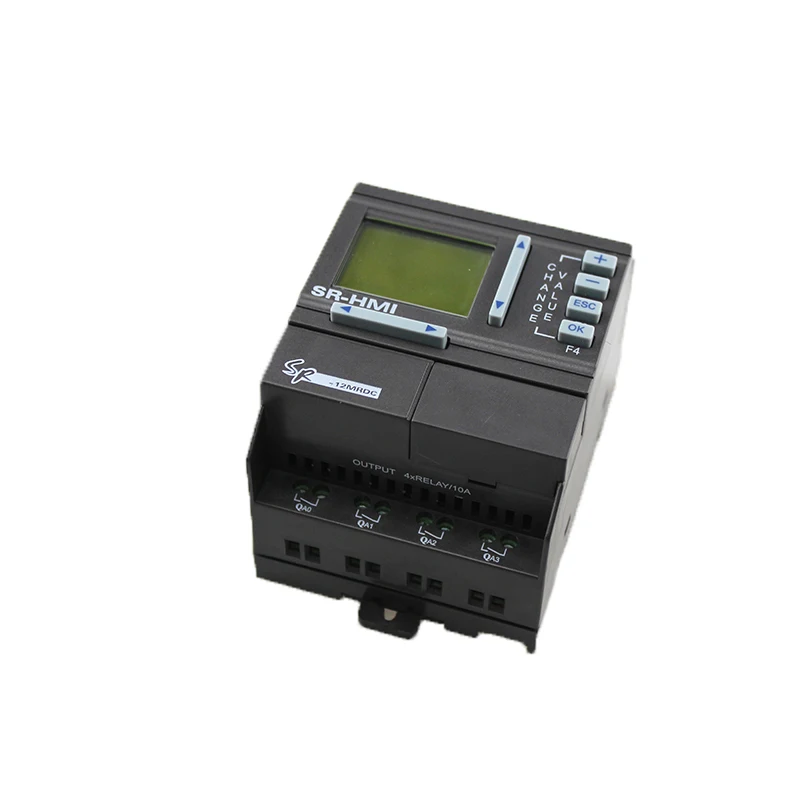

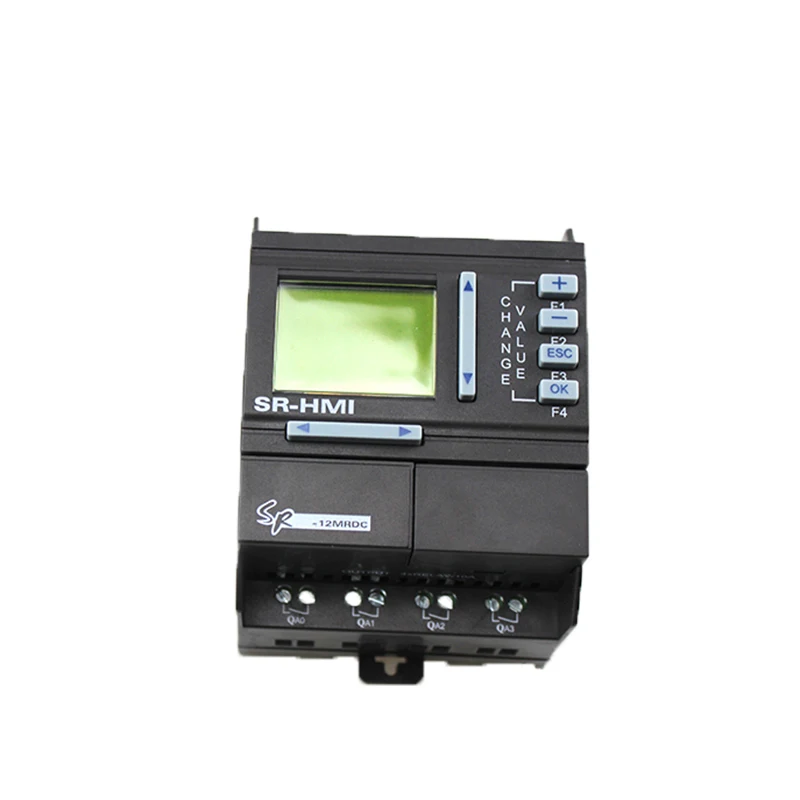

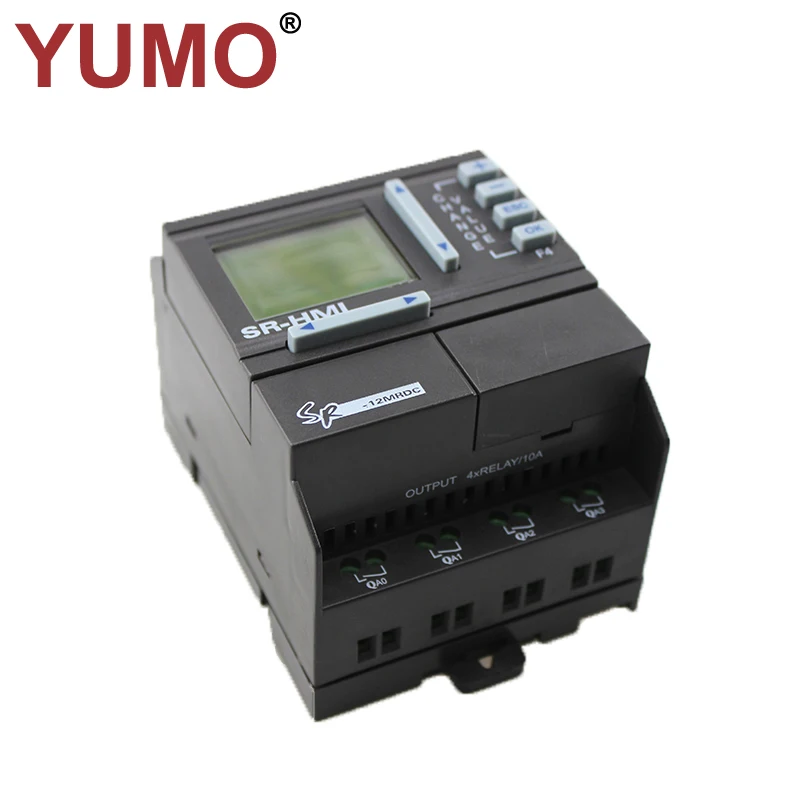

PLC Programmable logic controller SR-12MRDC
| SR-12MRDC | 12-24VDC 8 points DC input (with 6 points analog ) , 4 points relay output |
PLC, Programmable logic controller
1,Reasonable price and high quality
2, Well sold in the market
3, CE RoHs certification
Tecnical Parameter:
| Power supply | |
|
Power
|
DC12V-24V
|
| Input parameters: | |
|
Input No
|
8(A0-A5,B4-B5)
|
|
Digital input
|
8(A0-A5,B4-B5)
|
|
Analogue input
|
6(A0-A5)
|
|
Power range
|
DC0-24V(digital)/DC0-10V(analogue)
|
|
Input signal0
|
DC0-5V
|
|
Input signal1
|
DC10-24V
|
| Output parameters: | |
|
Output No
|
4(QA0-QA3)
|
|
Output type
|
Relay output
|
|
Output voltage
|
DC0-24V
|
|
Output current
|
Resistive load 10A/Inductive load 2A
|
| Environment temperature: | |
|
Running temperature
|
-2070
|
|
Storage/shipment
|
-4070
|
| Switch frequency: | |
|
Mechanism
|
10Hz
|
|
Resistor/light load
|
2Hz
|
|
Sensitive load
|
0.5Hz
|
| Other parameters: | |
|
Clock buffer memory at 25
|
80h
|
|
RTC accuracy
|
Max±5s/day
|
|
Protection |
IP20
|
|
Emission on line
|
EN55011(B)
|
|
The main frequency range
|
47-63Hz
|
|
Function block No
|
128
|
|
Program storage capacity
|
64K
|
|
Isolation intensity
|
IEC1131
|
