brand name
|
Voita
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Product Name
|
Switching power supply
|
|
Model Number
|
VT-S-200-12
|
|
Output Power
|
200W
|
|
Input Voltage
|
AC110/220V±15% by switch
|
|
Output Voltage
|
12VDC
|
|
Output voltage adjustment range
|
±10%
|
|
Output Frequency
|
47~63Hz
|
|
Output Current
|
16.7A
|
|

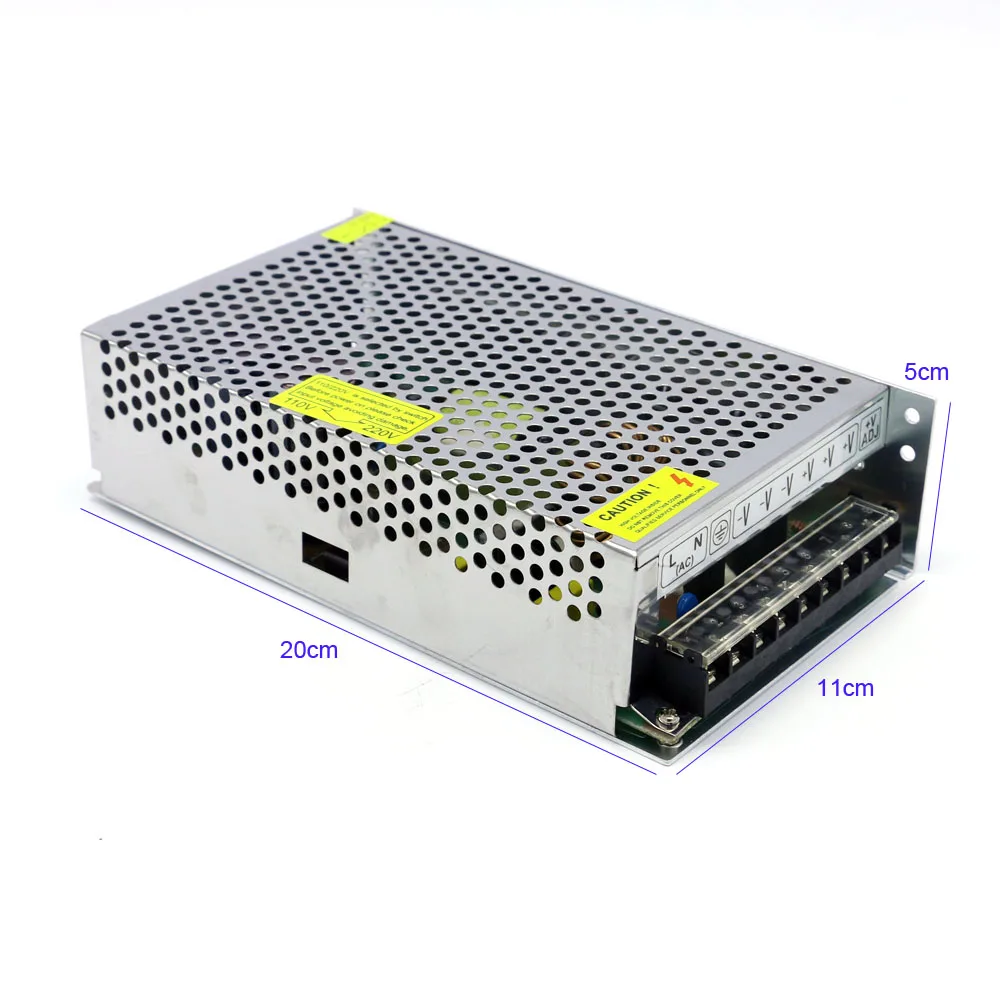

Size
|
199*98*42mm
|
|
weight
|
0.5kg
|
|
Efficiency
|
87%
|
|
Over voltage protection
|
Yes(＞115%-135% of rated output voltage)
|
|
Over Load protection
|
Yes(＞105%-150% Self-recovery)
|
|
humidity
|
20%-90%RH
|
|
Ripple
|
120mVp-p
|
|
Working temperature
|
-40°~ +65°
|
|
Short circuit protection
|
YES
|
|
Application
|
LED lighting/Industrial equipment
|
Feature
1.0-5V or 0-10V external control signal 2.Control voltage and current through PLC micro controller touch screen 3.Support adjust the voltage and current via Potentiometer 4.Protection: overload protection, short circuit protection, over current protection, etc. 5.Imported filter ring capacitor 6.Anti-interference, small ripple
