Stepper motor driver

Introduction

Stepper motors are the workhorses of precision motion control, found in everything from 3D printers to CNC machines. But what makes these motors move with such accuracy? Enter the stepper motor driver a critical component that bridges the gap between a microcontroller’s commands and the motor’s physical movement. Let’s break down how these drivers work and why they’re indispensable.

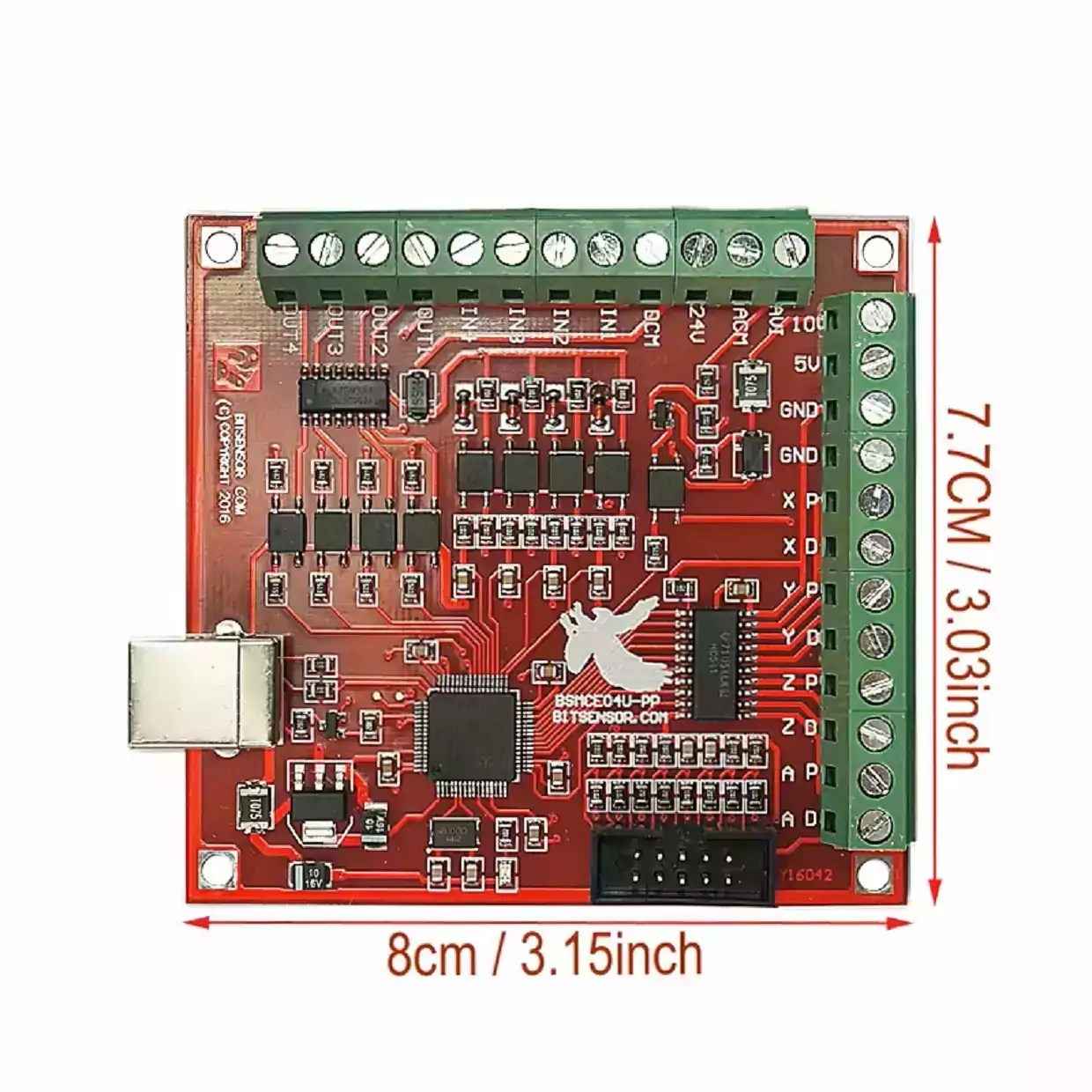

What is a Stepper Motor Driver?

A stepper motor driver is an electronic device that controls the operation of a stepper motor. It translates low-power control signals (e.g., from an Arduinoor Raspberry Pi) into high-power currents needed to energize the motor’s coils in a precise sequence. Without a driver, a stepper motor cannot function effectively, as microcontrollers lack the power and sequencing capability to drive the motor directly.

How Does It Work?

  1. Signal Reception: The driver receives step (pulses) and direction signals from a controller. Each pulse triggers a single step, while the direction pin sets the rotation.
  2. Coil Sequencing: Internally, the driver activates the motor’s coils in a specific order (e.g., full-step, half-step, or microstepping), creating magnetic fields that rotate the motor shaft.
  3. Current Regulation: Using techniques like pulse-width modulation (PWM) or chopper drives, the driver adjusts current flow to maintain torque and prevent overheating.
  4. Protection Mechanisms: Advanced drivers include safeguards against overcurrent, overheating, and voltage spikes, ensuring longevity.

Key Features to Look For

  • Step Modes: Support for full-step, half-step, or microstepping (e.g., 1/16 or 1/32 steps) for smoother motion.
  • Current Rating: Must match the motor’s requirements (e.g., 1A vs. 4A drivers).
  • Compatibility: Works with bipolar (4-wire) or unipolar (5-6 wire) motors.
  • Control Interface: Simple STEP/DIR inputs or advanced communication protocols like SPI.
  • Protection: Thermal shutdown, overcurrent protection, and under-voltage lockout.

Types of Drivers

  • Constant Voltage Drivers: Basic but less efficient, suitable for low-power applications.
  • Chopper Drives: Dynamically regulate current for higher efficiency and torque at speed (common in DIY projects).
  • Microstepping Drivers: Divide steps into smaller increments for ultra-smooth motion, ideal for precision tasks.

Popular Driver Modules

  • A4988: Affordable, supports up to 1A per coil, and offers 1/16 microstepping.
  • DRV8825: Higher current (up to 2.2A) and 1/32 microstepping.
  • TMC2208: Silent operation with advanced features like stealthChop for noise reduction.

Applications

Stepper motor drivers are ubiquitous in:

  • 3D Printers & CNC Machines: Precise layer and tool positioning.
  • Robotics: Controlled joint movements.
  • Automated Systems: Conveyor belts, camera focus mechanisms.
  • Medical Devices: Precision dosing pumps.

Choosing the Right Driver

  • Match Specifications: Ensure voltage/current ratings align with your motor.
  • Consider Microstepping: For smoother operation, opt for higher microstepping resolution.
  • Heat Management: Use heat sinks or cooling fans for high-power applications.

Pro Tips

  • Always calibrate the driver’s current limit (via potentiometer or software) to avoid motor stalling or overheating.
  • For noisy environments, opt for drivers with built-in noise suppression.

Conclusion

A stepper motor driver is the unsung hero behind precise motion control, transforming digital commands into mechanical action. Whether you’re building a DIY project or an industrial system, selecting the right driver ensures optimal performance and reliability. As technology evolves, expect smarter drivers with IoT integration and AI-driven adjustments to further revolutionize motion control!

Ready to Get Started? Check out popular drivers like the A4988 or DRV8825 for your next project—precision is just a pulse away! 🚀
