Tool function

In Computer Numerical Control (CNC) machining, the tool function is a critical aspect that governs how cutting tools are selected, managed, and utilized during the machining process. The tool function ensures that the correct tool is used at the right time for each specific operation, enhancing efficiency, accuracy, and productivity. Below, we will explore what the tool function entails, its importance, and how it operates in a CNC machine.

What is the Tool Function?

The tool function refers to the set of commands and operations within a CNC machine that control the selection, activation, and management of cutting tools. This includes:

1. Tool Selection: Choosing the appropriate tool from the machine’s tool magazine or carousel.
2. Tool Change: Automatically swapping tools during the machining process when different operations require different tools.
3. Tool Compensation: Adjusting for variations in tool length and diameter to ensure precise machining.
4. Tool Monitoring: Tracking tool wear and performance to prevent errors or damage.

Why is the Tool Function Important?

1. Efficiency: By automating tool changes, the CNC machine minimizes downtime and increases productivity.
2. Precision: Proper tool management ensures accurate cuts, reducing the risk of errors or defects.
3. Versatility: A well-implemented tool function allows a single CNC machine to perform multiple operations (e.g., drilling, milling, tapping) without manual intervention.
4. Cost Savings: Automated tool changes reduce labor costs and improve tool life by optimizing usage.

How Does the Tool Function Work?

The tool function operates through a combination of hardware and software components, including:

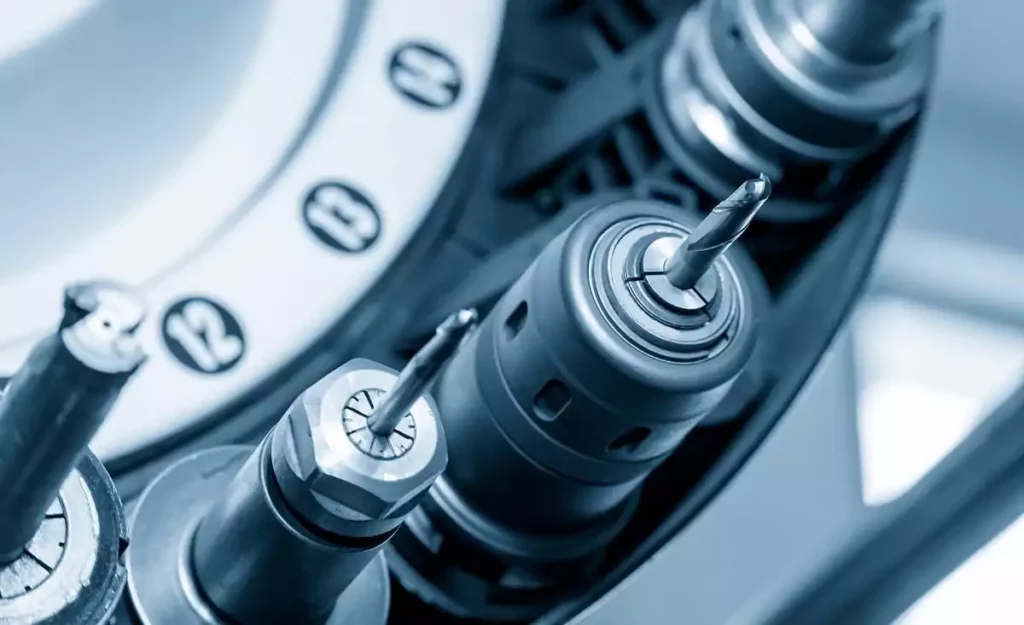

1. Tool Magazine/Carousel

• The tool magazine or carousel stores multiple cutting tools, each identified by a unique number.
• During machining, the CNC controller selects the required tool based on the program instructions.

2. Tool Change Mechanism

• The Automatic Tool Changer (ATC) is responsible for swapping tools. It retrieves the specified tool from the magazine, installs it in the spindle, and returns the previous tool to storage.
• Example Command: M06 T02 – This command tells the machine to change to tool number 2.

3. Tool Compensation

• Tools may vary slightly in size due to manufacturing tolerances or wear. To account for this, CNC machines use tool compensation:
  • Length Compensation: Adjusts for differences in tool length along the Z-axis.
  • Diameter Compensation: Adjusts for variations in tool diameter along the X and Y axes.
• Example Commands:
  • G43 H02 – Applies length compensation for tool number 2.
  • G41 D02 – Applies left-hand diameter compensation for tool number 2.

4. Tool Offset Table

• The tool offset table stores pre-measured values for each tool, such as length and diameter offsets.
• These values are loaded into the CNC controller and applied automatically during machining.

5. Tool Wear Monitoring

• Modern CNC machines often include sensors or software to monitor tool wear. When a tool reaches its expected lifespan, the machine alerts the operator or automatically switches to a backup tool.

Example of Tool Function in Action

Consider a CNC milling operation where the following steps are performed:

1. Program Start: The CNC program begins with tool number 1 installed in the spindle.

   M06 T01 (Select and load tool 1)
   G90 G00 X0 Y0 Z50 (Move to starting position)
   G01 Z-10 F100 (Plunge cut)

2. Drilling Operation: After milling, the program switches to a drill bit for hole-making.

   M06 T03 (Change to tool 3, the drill bit)
   G00 X20 Y20 Z50 (Move to drilling position)
   G81 X20 Y20 Z-20 R-5 F100 (Perform drilling cycle)

3. Tapping Operation: Finally, the program uses a tap for thread creation.

   M06 T04 (Change to tool 4, the tap)
   G00 X20 Y20 Z50 (Move to tapping position)
   G84 X20 Y20 Z-20 R-5 F50 (Perform tapping cycle)

4. Program End: Once all operations are complete, the machine stops.

   M30 (End of program)

Key Benefits of the Tool Function

1. Automation: Reduces manual intervention, allowing the machine to run continuously with minimal supervision.
2. Flexibility: Enables complex parts to be machined in a single setup using multiple tools.
3. Accuracy: Ensures consistent results by compensating for tool variations and wear.
4. Safety: Prevents errors caused by incorrect tool selection or improper tool installation.

Conclusion

The tool function is an essential component of CNC machining, enabling precise, efficient, and automated tool management. By leveraging advanced features like automatic tool changers, compensation systems, and wear monitoring, modern CNC machines can handle a wide range of operations with minimal input from the operator. Understanding and optimizing the tool function not only improves productivity but also enhances the quality and reliability of machined parts. Whether you’re working with simple milling tasks or complex multi-operation projects, mastering the tool function is key to successful CNC machining.
