5-axis CNC machining

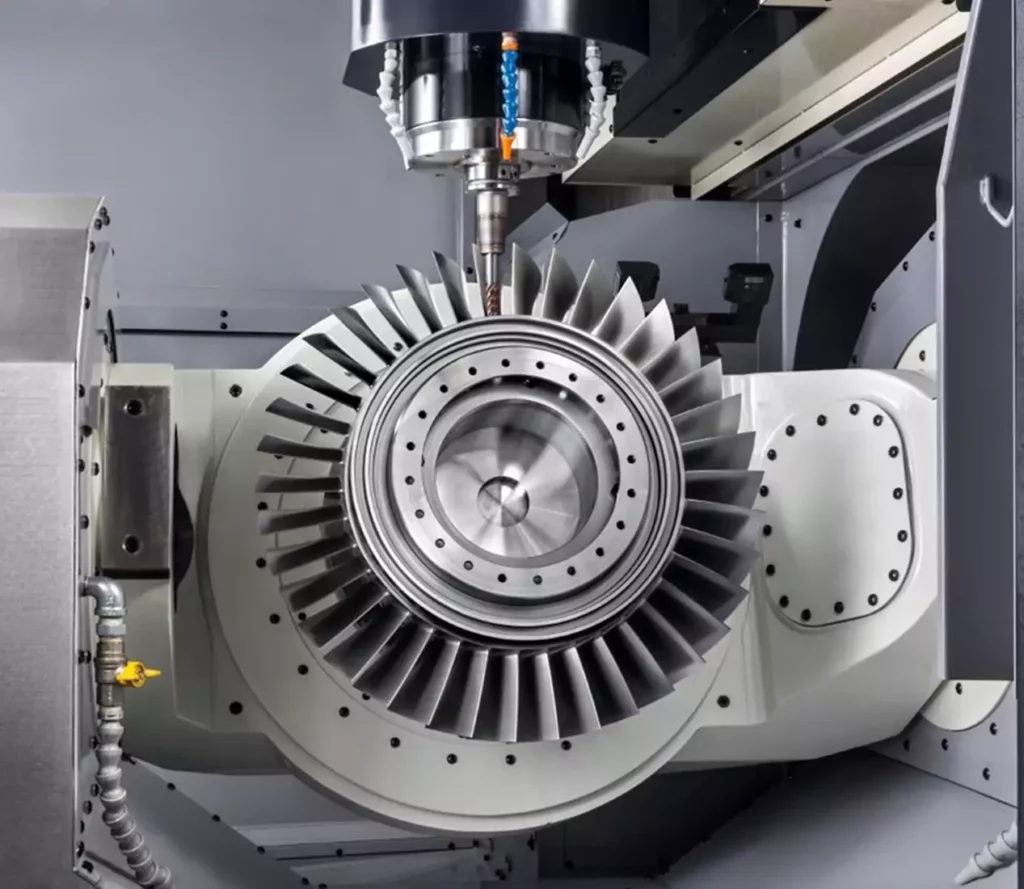

5 axis CNC milling machine

If you’ve ever wondered how complex, intricate parts like turbine blades, automotive components, or medical devices are manufactured with such precision, the answer often lies in 5-axis CNC machining. But what exactly is it? And why does it matter if you’re not a machinist? Let’s break it down into simple terms.

What is 5-Axis CNC Machining?

CNC stands for Computer Numerical Control, which means that machines are programmed using computers to perform tasks with incredible accuracy and repeatability. Traditional CNC machines typically move along three axes X (left/right), Y (forward/backward), and Z (up/down). However, 5-axis CNC machines add two more rotational axes, allowing the cutting tool or workpiece to rotate as well.

These additional movements enable the machine to approach the material from virtually any angle, making it possible to create highly detailed and complex shapes in a single setup.

Why Should You Care About 5-Axis Machining?

Even if you’re not directly involved in manufacturing, understanding 5-axis CNC machining can help you appreciate its impact on industries ranging from aerospace to healthcare. Here’s why it’s so important:

  1. Increased Efficiency: With traditional 3-axis machining, creating complex parts might require multiple setups, where the part needs to be repositioned several times. In contrast, 5-axis machining allows for all sides of the part to be worked on simultaneously, reducing time and increasing productivity.
  2. Higher Precision: The ability to access hard-to-reach areas ensures that even the most intricate designs can be produced with exacting detail. This level of precision is crucial for industries like aerospace, where tolerances must be extremely tight.
  3. Improved Surface Finish: By keeping the cutting tool perpendicular to the surface being machined at all times, 5-axis systems produce smoother finishes without requiring secondary processes.
  4. Reduced Costs: Fewer setups mean less labor, fewer errors, and reduced chances of damaging the part during handling. All these factors contribute to cost savings over time.
  5. Unlimited Design Possibilities: Engineers and designers have far greater freedom when they know their creations can be manufactured accurately using 5-axis technology. It opens up opportunities for innovation across various fields.

How Does It Work?

Imagine holding a pencil while drawing on a piece of paper. Normally, you’d only move your hand left/right and forward/backward (X and Y axes). Now imagine tilting the pencil at different angles while also moving it up/down (adding rotation around X and Y axes). That’s essentially what a 5-axis CNC machine does—it moves both linearly and rotationally to achieve precise cuts.

There are two main types of 5-axis configurations:

  • Swivel Head Machine: The spindle itself rotates along two extra axes.
  • Rotary Table Machine: The workpiece sits on a rotating table that provides the additional movement.

Both approaches allow the machine to maintain optimal contact between the tool and the material throughout the entire process.

Real-World Applications

Here are some examples of how 5-axis CNC machining impacts everyday life:

  • Aerospace: Producing lightweight yet strong components for airplanes, such as wing structures and engine parts.
  • Medical Devices: Creating implants and surgical instruments with high accuracy and biocompatibility.
  • Automotive Industry: Manufacturing molds for car parts, exhaust manifolds, and other custom components.
  • Art & Sculpture: Artists use this technology to carve sculptures out of metal or stone with stunning detail.

Final Thoughts

While 5-axis CNC machining may sound technical, its implications are far-reaching and accessible to anyone interested in modern manufacturing. Whether you’re an engineer designing cutting-edge products, a business owner looking to streamline production, or simply someone curious about how things are made, understanding this technology gives you insight into one of the most powerful tools driving innovation today.

So next time you see a beautifully crafted object or hear about advancements in engineering, remember—the magic of 5-axis CNC machining might just be behind it!

Classification of 5-Axis CNC Machines

5-axis CNC machines are classified based on their kinematic configurations, which determine how the machine achieves its five axes of motion. These configurations vary depending on whether the additional rotational axes are provided by the spindle head or the worktable. Below is a detailed classification of the most common types of 5-axis CNC machines:


1. Dual Rotary Table (TRT) Configuration

  • Description: Both rotational axes are located on the worktable.
  • How It Works: The workpiece sits on a table that rotates around two axes, typically labeled A (rotation about the X-axis) and C (rotation about the Z-axis). The spindle remains fixed in position.
  • Advantages:
  • Simple design with fewer moving parts in the spindle assembly.
  • Suitable for smaller, lighter workpieces.
  • Disadvantages:
  • Limited payload capacity due to the weight constraints of the rotating table.
  • May struggle with very large or heavy parts because of the need to rotate the entire workpiece.
  • Applications: Ideal for small to medium-sized components, such as molds, dies, and intricate sculptures.

2. Dual Tilt Spindle (TTS) Configuration

Dual Tilt Spindle (TTS) Configuration
  • Description: Both rotational axes are located in the spindle head.
  • How It Works: The spindle itself tilts along two axes (typically labeled A and B), allowing the cutting tool to reach complex angles while the worktable remains stationary.
  • Advantages:
  • Can handle larger and heavier workpieces since the table doesn’t move.
  • Provides excellent rigidity and stability for machining large components.
  • Disadvantages:
  • More complex and expensive to build and maintain due to the intricate spindle mechanism.
  • Potential limitations in speed and acceleration compared to other configurations.
  • Applications: Commonly used in aerospace, automotive, and energy industries for producing large, complex parts like turbine blades and engine blocks.

3. Single Rotary Table + Tilt Spindle (RTS) Configuration

  • Description: One rotational axis is on the worktable, and one is on the spindle head.
  • How It Works: The worktable rotates around one axis (usually C), while the spindle tilts around another axis (usually A or B).
  • Advantages:
  • Balances the benefits of both TRT and TTS configurations.
  • Offers good flexibility and versatility for a wide range of applications.
  • Cost-effective compared to dual tilt spindle designs.
  • Disadvantages:
  • Slightly more complicated than TRT but less rigid than TTS.
  • Applications: Widely used across various industries for mid-range complexity parts, including medical devices, consumer goods, and electronics.

4. Trunnion-Type Machine

  • Description: Two rotational axes are located on the worktable, similar to TRT, but the table can tilt instead of just rotating.
  • How It Works: The worktable pivots around two axes (A and B), enabling full 5-axis movement without requiring a tilting spindle.
  • Advantages:
  • Excellent accessibility to all sides of the workpiece.
  • High load-bearing capacity for heavy parts.
  • Disadvantages:
  • Limited by the size of the trunnion mechanism, which may restrict part size.
  • Applications: Often used in heavy-duty machining operations, such as those found in the defense and oil/gas industries.

5. Hybrid Configurations

Some manufacturers create hybrid configurations that combine elements of the above types to meet specific needs. For example:

  • A machine might have a tilting spindle for certain operations and a rotary table for others.
  • Custom setups are sometimes developed for specialized applications, such as machining extremely large or uniquely shaped parts.

Key Considerations When Choosing a Configuration

When selecting a 5-axis CNC machine, consider the following factors:

  1. Workpiece Size and Weight: Larger, heavier parts often benefit from TTS or trunnion-type machines, while smaller parts are better suited to TRT or RTS configurations.
  2. Complexity of Parts: Highly intricate geometries may require a TTS configuration for maximum flexibility.
  3. Cost: TRT and RTS machines tend to be more affordable upfront, while TTS and trunnion machines offer higher performance at a higher price.
  4. Application-Specific Needs: Certain industries, like aerospace, may prefer TTS machines for their precision and rigidity, while others, like mold-making, may favor TRT machines for their simplicity.

Summary Table: Comparison of 5-Axis CNC Configurations

ConfigurationRotational Axes LocationAdvantagesDisadvantagesBest Suited For
TRT (Dual Rotary Table)WorktableSimple design, cost-effectiveLimited payload, struggles with large/heavy partsSmall to medium parts, mold/die making
TTS (Dual Tilt Spindle)SpindleHandles large/heavy parts, excellent rigidityComplex design, higher costAerospace, automotive, large components
RTS (Single Rotary Table + Tilt Spindle)Split between table and spindleBalanced performance, versatileSlightly less rigid than TTSGeneral-purpose machining
Trunnion-TypeWorktableHigh load-bearing capacity, full 5-axis accessRestricted by trunnion sizeHeavy-duty applications

By understanding these classifications, you can choose the right type of 5-axis CNC machine to suit your specific manufacturing requirements. Whether you’re producing delicate medical implants or massive aircraft components, there’s a configuration designed to meet your needs!
