Encoder

Servo motors are the unsung heroes of modern automation, powering everything from robotic arms to 3D printers with remarkable precision. But behind their seamless operation lies a critical component: the encoder. This blog post explores how encoders enable servo motors to deliver unmatched accuracy and control in dynamic applications.

What is an Encoder?

An encoder is a sensor that measures the position, speed, and direction of a motor’s shaft. In servo systems, encoders act as the “eyes” of the motor, providing real-time feedback to the controller. This feedback loop ensures the motor operates exactly as intended, correcting errors on the fly.

How Encoders Work with Servo Motors

Servo motors rely on a closed-loop control system. Here’s the process:

1. Command Input: The controller sends a target position or speed to the motor.
2. Motor Action: The motor adjusts its movement to meet the command.
3. Feedback Loop: The encoder continuously monitors the motor’s actual position/speed.
4. Error Correction: The controller compares the feedback to the target, adjusting power to the motor to minimize discrepancies.

Think of it like a thermostat: if the room is too cold, the heater activates until the desired temperature is reached. Encoders ensure the motor “knows” when to stop or adjust.

Types of Encoders in Servo Motors

Encoders come in two primary types, each suited to different applications:

1. Incremental Encoders

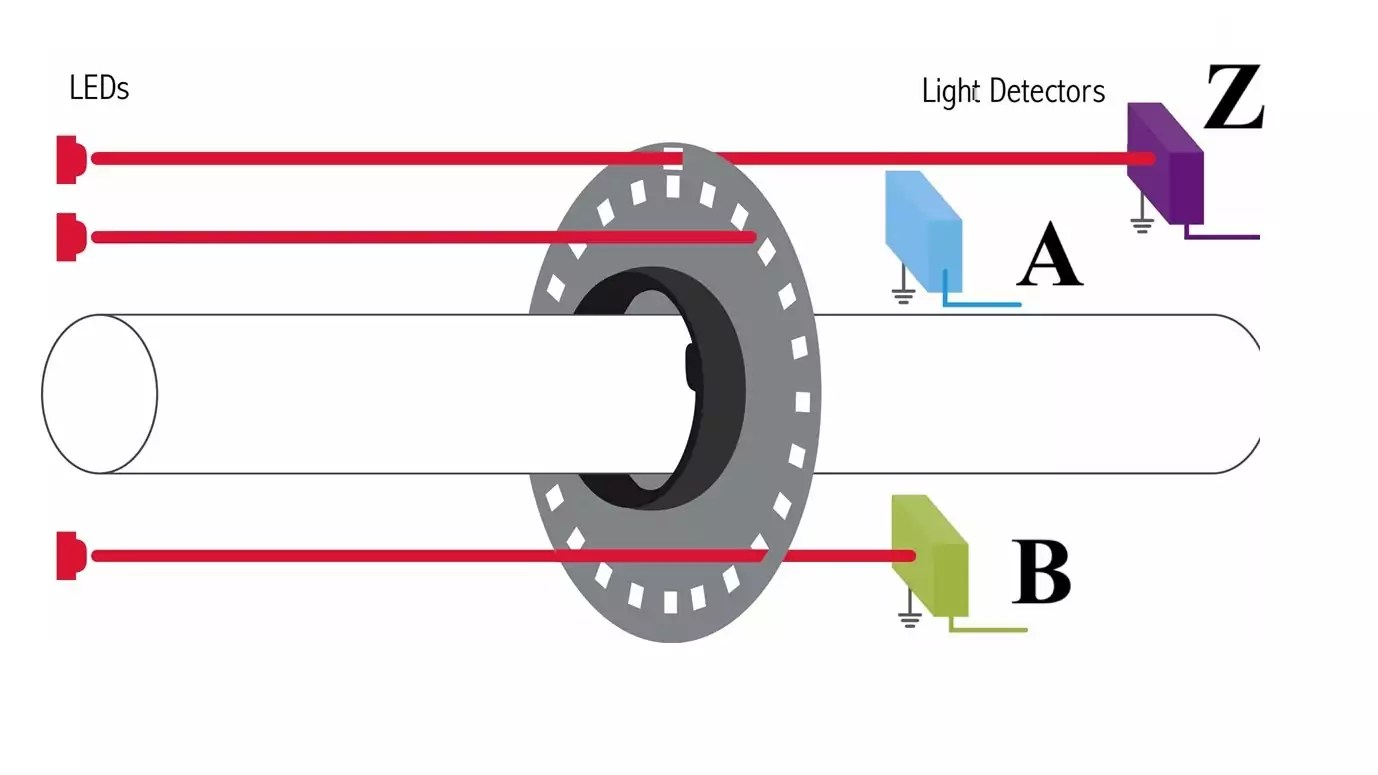

• Provide relative position data using pulses (A/B channels) to track movement.
• Requires a “homing” sequence after power loss to re-establish a reference point.
• Ideal for applications prioritizing speed and cost-effectiveness, like conveyor systems.

2. Absolute Encoders

• Assign a unique digital code to each shaft position, retaining data even after power loss.
• Eliminates homing needs, making them perfect for robotics and CNC machines where precision is critical.

Why Encoders Matter: Key Benefits

• Precision: High-resolution encoders detect minute movements (down to fractions of a degree).
• Error Correction: Instant feedback ensures the motor stays on target, even under varying loads.
• Adaptability: Adjusts to dynamic conditions, such as sudden changes in speed or obstacles.
• Efficiency: Reduces energy waste by optimizing motor performance.

Applications of Encoder-Equipped Servo Motors

Encoders are indispensable in industries demanding accuracy:

• Robotics: Enables precise limb movements and object manipulation.
• CNC Machining: Ensures tools cut materials with micron-level accuracy.
• Automated Assembly Lines: Synchronizes conveyor belts and robotic arms for seamless production.
• Drones: Stabilizes flight by adjusting motor speeds in real time.

Conclusion

Encoders are the backbone of servo motor performance, transforming them from simple actuators into intelligent, responsive systems. Whether in a factory robot or a high-precision 3D printer, encoders ensure every movement is exact, efficient, and reliable. As automation continues to advance, the synergy between encoders and servo motors will remain pivotal in shaping smarter, more agile technologies.

Explore the power of precision integrate encoder-equipped servo motors into your next project!
