Optocoupler

Optocoupler, also known as opto-isolator, are electronic components that transfer electrical signals between isolated circuits using light. In the realm of electronics, where safety and reliability are paramount, these devices act as silent guardians by bridging signals across isolation barriers while blocking harmful voltages or noise. Let’s explore how this tiny yet critical component makes a big impact.

What is an Optocoupler?

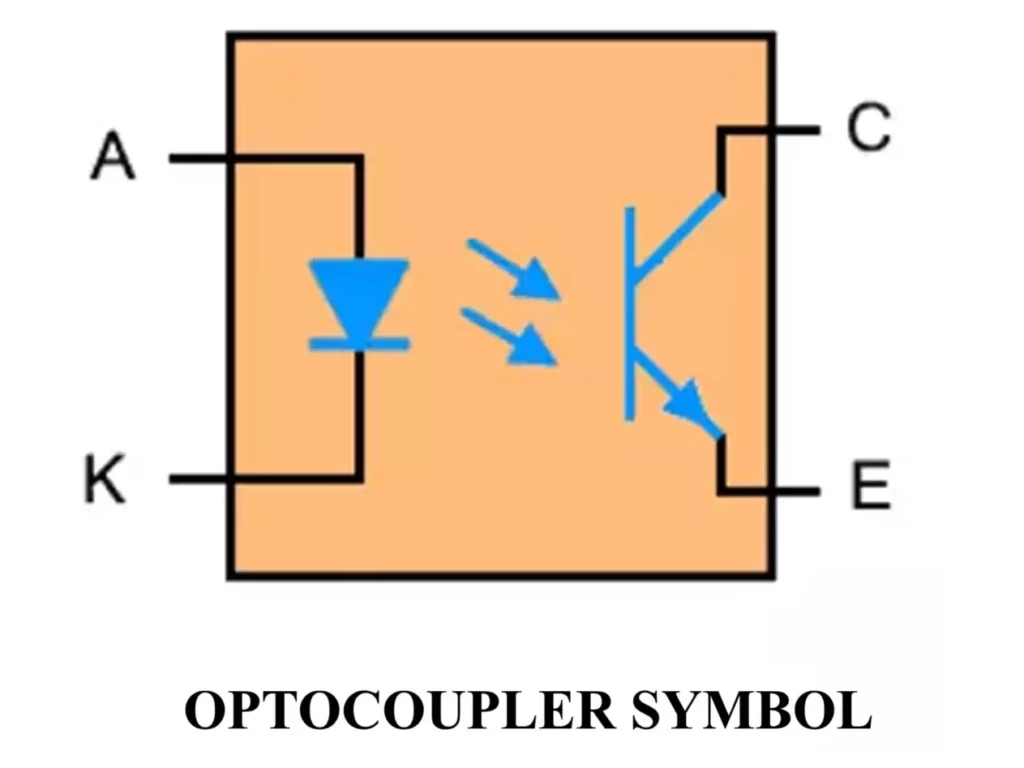

An optocoupler (also called an optoisolator) is a semiconductor device that transfers electrical signals between two isolated circuits using light. It combines a light-emitting diode (LED) on the input side and a light-sensitive detector (like a phototransistor) on the output side, all encased in a single package. This design ensures no direct electrical connection, allowing signals to pass while blocking harmful voltages or noise.

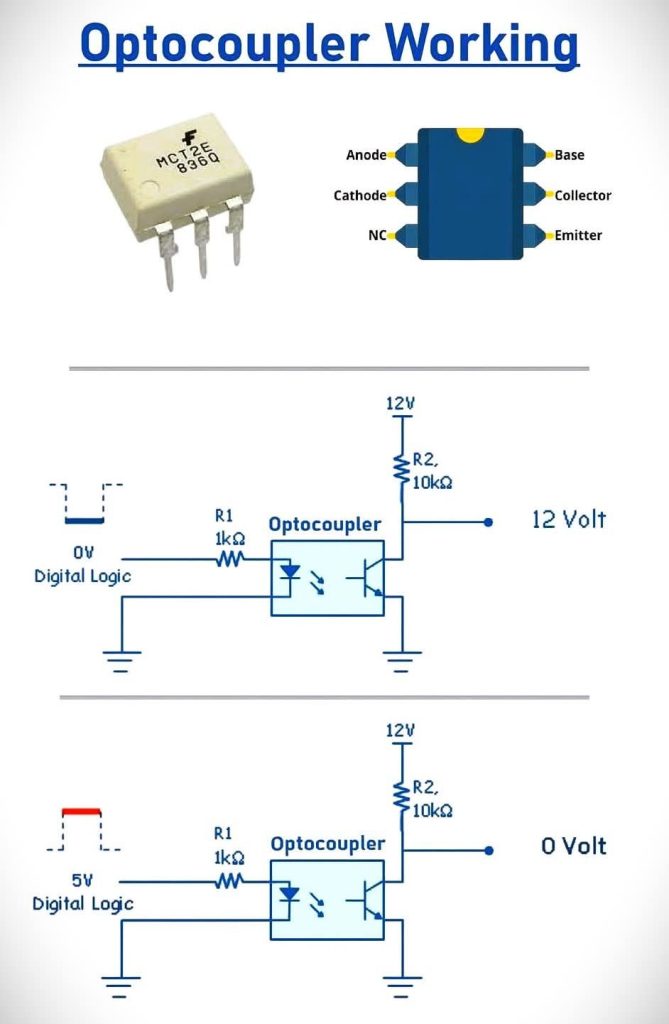

How Does Optocoupler Work?

When an electrical signal activates the input LED, it emits infrared light proportional to the input current. This light is detected by the phototransistor or photodiode on the output side, which converts it back into an electrical signal. This optical transmission eliminates conductive pathways, effectively isolating the two circuits. For example, a low-voltage microcontroller can safely communicate with a high-voltage motor driver without risking damage.

Key Applications

Optocouplers are indispensable in scenarios demanding electrical isolation:

1. Power Supply Regulation: They stabilize feedback loops in switch-mode power supplies by isolating high-voltage sections from low-voltage control circuits.
2. Medical Devices: Protect sensitive patient-connected equipment from dangerous voltage spikes.
3. Industrial Automation: Shield control systems from motor noise and voltage transients in machinery.
4. Communication Systems: Safely transmit data across interfaces like RS-232 or Ethernet.

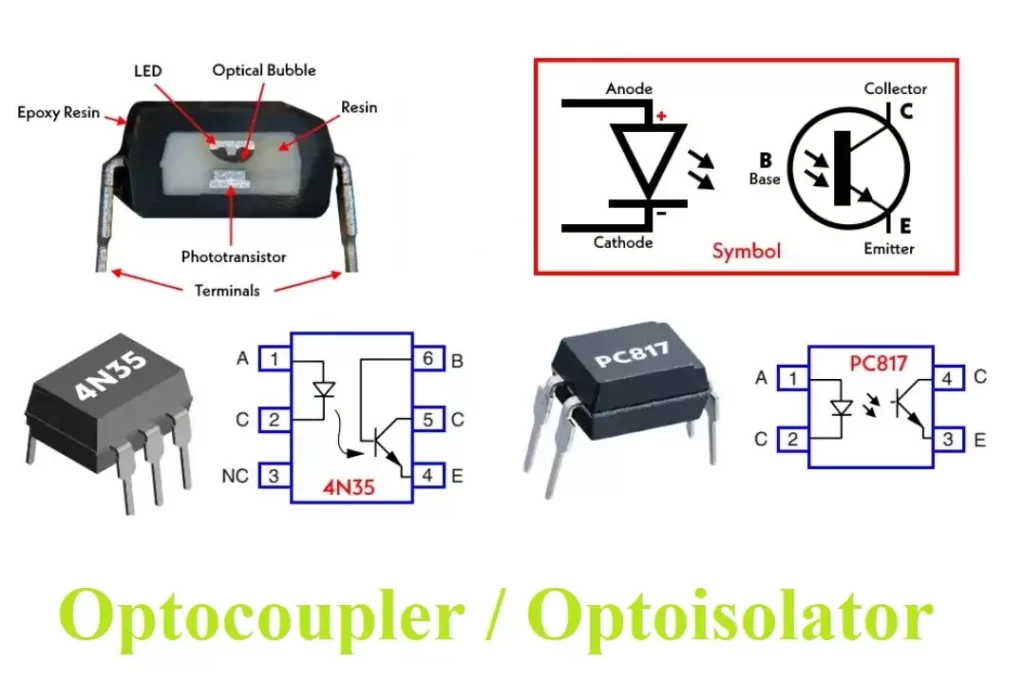

Types of Optocoupler

While the core principle remains consistent, optocouplers vary based on their detector type:

• Phototransistor: Common for general-purpose signal isolation.
• Photodiode: Offers faster response times for high-frequency applications.
• Photodarlington: Provides higher gain for low-input-current scenarios.

Advantages

• Safety: Blocks high voltages and prevents ground loops.
• Noise Immunity: Shields circuits from electromagnetic interference (EMI).
• Solid-State Reliability: No moving parts reduce wear and tear, ensuring longevity.

Conclusion

Optocouplers are the unsung guardians of modern electronics, enabling safe and efficient signal transmission across isolated systems. Whether in medical devices, industrial controls, or everyday power supplies, their ability to merge light and electronics ensures both performance and protection. Next time you design a circuit, consider how an optocoupler could be your safest choice.
