Ishikawa, also known as the Ishikawa diagram or fishbone diagram, is a visual tool used for problem-solving and quality improvement. It was developed by Dr. Kaoru Ishikawa, a Japanese quality control expert, in the 1960s. The diagram is named after him in recognition of his contribution to quality management practices.

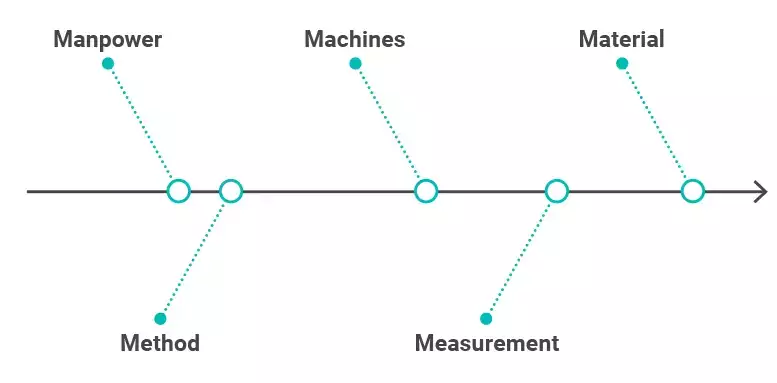

Fishbone diagram

The Ishikawa diagram is a cause-and-effect analysis tool that helps identify and organize the potential causes of a problem or an effect. It provides a structured way of looking at various factors that could contribute to a specific issue. The diagram takes the shape of a fishbone, with the effect or problem being analyzed represented as the “head” of the fish, and the potential causes represented as the “bones” branching out from the spine.

Here are the main components of an Ishikawa diagram:

  1. Problem or Effect: This is the central issue or outcome that you want to analyze and understand better. It is typically written as a clear and concise statement at the head of the diagram.
  2. Major Categories: These are the main branches or “bones” of the fishbone diagram, representing the general categories of factors that could contribute to the problem. Commonly used categories are often referred to as the 6Ms: Manpower, Methods, Machines, Materials, Measurements, and Environment. However, the categories can be customized based on the specific problem or context.
  3. Causes: Under each major category, potential causes or sub-causes are listed. These causes represent specific factors that could contribute to the problem. The causes can be brainstormed and added as branches under the appropriate category.
  4. Relationships: The Ishikawa diagram allows for the addition of secondary and tertiary branches to further elaborate on the causes and their relationships. This helps in exploring deeper levels of causes and their interdependencies.

The purpose of creating an Ishikawa diagram is to facilitate a comprehensive analysis of the causes and factors related to a problem. By visually representing the potential causes and their relationships, it helps teams or individuals in problem-solving efforts, root cause analysis, and identifying areas for improvement.

When using an Ishikawa diagram, it is important to involve relevant stakeholders and subject matter experts to ensure a thorough exploration of potential causes. Brainstorming sessions and discussions can be conducted to identify and document the causes on the diagram.

Overall, the Ishikawa diagram is a valuable tool for problem-solving and quality improvement initiatives, providing a structured approach to identify and understand the causes and factors contributing to a problem or effect.
