Thread cycle

In CNC machining, a thread cycle refers to a pre-programmed sequence of operations used to create internal (tapping) or external threads on a workpiece. These cycles simplify the process of threading by automating repetitive movements, reducing programming time, and ensuring consistency in thread quality.

Thread cycles are typically part of the G-code language and are used for both metric and imperial threads. Below is an overview of common thread cycles and how they work.

1. Common Thread Cycles

a) G76: Precision Threading Cycle

• Purpose: Used for high-precision internal or external threading, especially for finishing threads.
• Process:
  1. The tool moves to the starting position.
  2. It performs multiple passes to gradually cut the thread to the desired depth.
  3. Each pass removes a small amount of material, resulting in a precise thread form.
• Syntax:G90 G76 X__ Z__ R__ P__ Q__ F__
  • X__: Final major diameter of the thread.
  • Z__: Final length of the thread.
  • R__: Radius of the chamfer or lead-in angle.
  • P__: Pitch of the thread (for metric threads) or number of threads per inch (TPI) for imperial threads.
  • Q__: Depth of cut per pass.
  • F__: Feed rate (synchronized with the spindle speed).

b) G33: Simple Thread Cycle

• Purpose: Basic threading cycle for creating threads in one pass.
• Process:
  1. The tool moves to the starting position.
  2. It cuts the thread in a single pass at a constant feed rate synchronized with the spindle speed.
• Syntax:G33 Z__ K__
  • Z__: Final length of the thread.
  • K__: Pitch of the thread (for metric threads) or reciprocal of TPI for imperial threads.

c) G84: Tapping Cycle

• Purpose: Used for creating internal threads (tapping).
• Process:
  1. The tap moves to the specified X-Y location.
  2. It plunges into the pre-drilled hole while rotating to cut the internal thread.
  3. After reaching the desired depth, it retracts.
• Syntax:G90 G84 X__ Y__ Z__ R__ F__
  • X__ Y__: Hole location.
  • Z__: Final depth of the thread.
  • R__: Retract position above the surface.
  • F__: Spindle speed synchronized with the tap’s pitch.

d) G74: Left-Hand Threading Cycle

• Purpose: Used for creating left-hand threads.
• Process:
  1. Similar to G33 but creates threads with a left-hand orientation.
• Syntax:G74 X__ Z__ I__ F__
  • I__: Pitch of the thread.

e) G92: Single-Pass Thread Cycle

• Purpose: Used for creating threads in one pass, similar to G33.
• Process:
  1. The tool moves to the starting position.
  2. It cuts the thread in a single pass at a constant feed rate.
• Syntax:G92 X__ Z__ F__
  • X__: Final major diameter of the thread.
  • Z__: Final length of the thread.
  • F__: Feed rate synchronized with the spindle speed.

2. Key Parameters for Threading

• Pitch (P): The distance between adjacent threads. For metric threads, this is measured in millimeters. For imperial threads, it is expressed as threads per inch (TPI).
• Feed Rate (F): The feed rate must be synchronized with the spindle speed to ensure accurate thread pitch. Typically, F = Pitch × Spindle Speed.
• Spindle Speed (S): The spindle speed is critical for maintaining the correct thread pitch. It is usually calculated based on the desired cutting speed and tool diameter.
• Depth of Cut (DOC): Determines how much material is removed in each pass. Smaller depths result in better surface finish but require more passes.

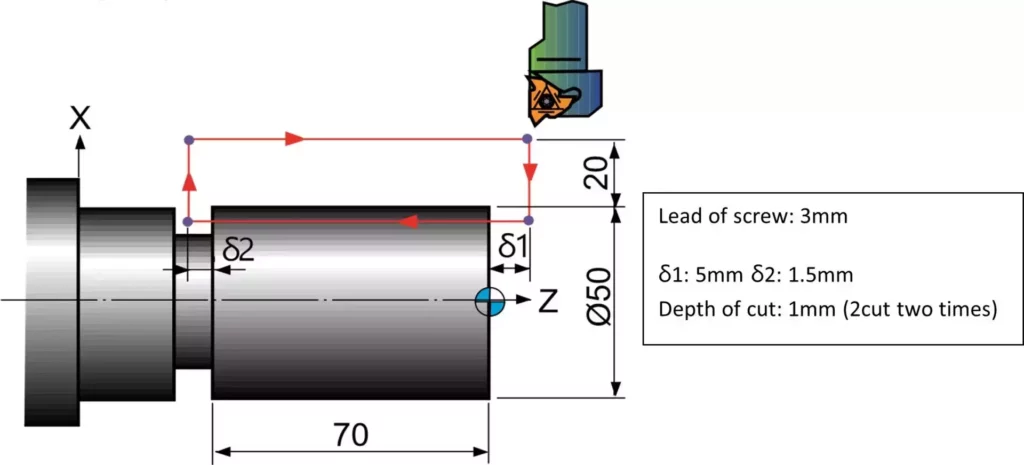

3. Example Program Using G76

Below is an example of using the G76 cycle to create a precision external thread:

N10 G90 G00 X20 Z5      ; Rapid move to starting position
N20 T02 M06             ; Tool change to threading tool
N30 S500 M03            ; Set spindle speed to 500 RPM and start spindle
N40 G76 X16 Z-40 R1 P2 Q0.5 F2.
                        ; Create a 2mm pitch thread, 40mm long, with 0.5mm depth per pass
N50 G00 X50 Z5          ; Rapid retract to safe position
N60 M05                 ; Stop spindle
N70 M30                 ; End program

4. Tips for Effective Threading

1. Select the Right Tool:

• Use appropriate threading tools (e.g., single-point threading tools or taps) for the material being machined.
• Ensure the tool has the correct geometry for the desired thread type (e.g., V-thread, Acme, etc.).

1. Synchronize Feed and Spindle Speed:

• The feed rate must match the thread pitch to avoid errors. Use the formula:

  F =Pitch x Spindle Speed


1. Use Coolant:

• Apply coolant to reduce heat and extend tool life, especially when threading hard materials.

2. Pre-Drill Holes for Tapping:

• For internal threads, pre-drill a hole slightly larger than the minor diameter of the thread to allow room for the tap.

3. Monitor Tool Wear:

• Threading tools wear quickly due to the high pressure and heat generated during cutting. Regularly inspect and replace worn tools.

By understanding and utilizing these thread cycles, CNC operators can efficiently produce high-quality internal and external threads with minimal setup time and effort.
