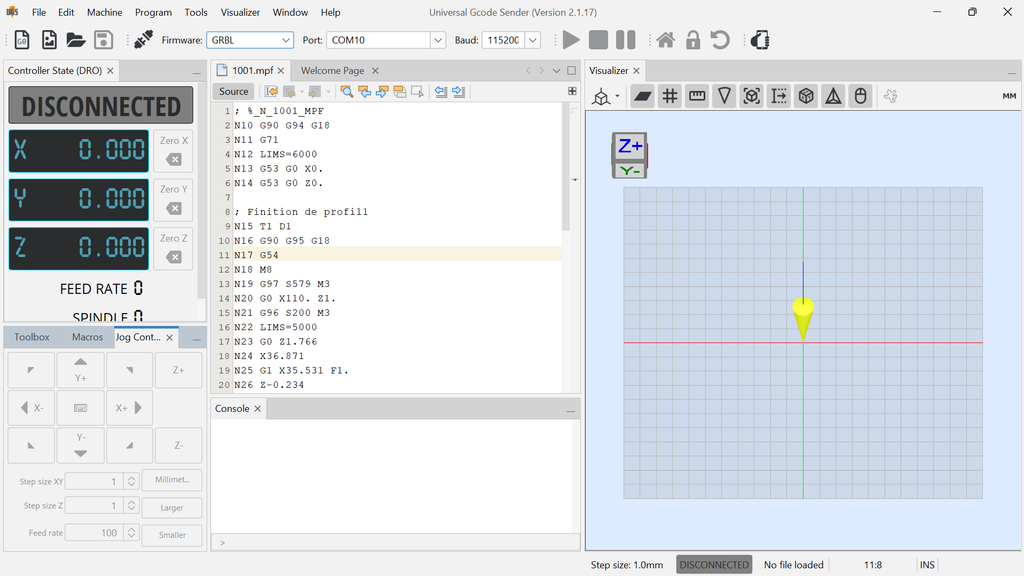

Universal gcode sender

Creating a DIY CNC (Computer Numerical Control) machine is an exciting project that combines creativity, engineering, and technology. Once you’ve assembled your CNC machine, one of the most crucial tools you’ll need to control it is software capable of sending G-code instructions to your machine. This is where Universal G-Code Sender (UGS) comes into play.

What is Universal GCode Sender?

Universal G-Code Sender is an open-source, cross-platform application designed to send G-code to CNC machines. It serves as a bridge between your computer and your CNC controller, allowing you to upload and execute G-code files that define the movements and actions of your CNC machine. Whether you’re cutting wood, engraving metal, or milling plastic, UGS ensures precise and reliable control over your CNC setup.

Why Use Universal GCode Sender?

1. Open Source: UGS is free and open-source, meaning there are no licensing fees, and you can modify the code if needed.
2. Cross-Platform Compatibility: UGS works on Windows, macOS, and Linux, making it accessible to users regardless of their operating system.
3. User-Friendly Interface: The interface is intuitive and easy to navigate, even for beginners.
4. Serial Communication: UGS supports serial communication protocols, which are commonly used by many CNC controllers like Arduino-based systems, Smoothieboard, and GRBL.
5. Real-Time Control: You can pause, resume, and adjust feed rates in real-time, giving you greater control over your CNC operations.
6. Extensive Community Support: As an open-source project, UGS has a vibrant community of developers and users who contribute to its development and provide support through forums and documentation.

Setting Up Universal GCode Sender for Your DIY CNC Machine

Step 1: Install UGS

• Download the latest version of UGS from the official GitHub repository or website.
• Install the software on your computer. Follow the installation instructions specific to your operating system.

Step 2: Connect Your CNC Machine

• Ensure your CNC machine is properly connected to your computer via USB or another serial connection.
• Identify the correct COM port or serial port that your CNC controller is using. This information can usually be found in your computer’s device manager or terminal settings.

Step 3: Configure UGS

• Open UGS and select the appropriate serial port and baud rate that matches your CNC controller’s settings.
• Test the connection by sending a simple command, such as $H (homing command) or G0 X0 Y0 (move to origin), to ensure communication is established.

Step 4: Load and Send G-Code

• Prepare your G-code file using a CAM (Computer-Aided Manufacturing) software like Fusion 360, Easel, or Inkscape with a G-code plugin.
• Load the G-code file into UGS by clicking “File” > “Open” and selecting your file.
• Review the G-code in the preview window to ensure it looks correct.
• Click “Send” to begin transmitting the G-code to your CNC machine.

Step 5: Monitor and Adjust

• While the CNC machine is running, you can monitor its progress in real-time within UGS.
• If necessary, adjust the feed rate or pause the job using the controls provided in the software.

Tips for Using UGS with Your DIY CNC Machine

• Calibration: Before starting a job, calibrate your CNC machine to ensure accurate positioning. Use the homing feature to set the origin point.
• Safety First: Always double-check your G-code and ensure that the toolpath doesn’t exceed the machine’s limits or collide with any components.
• Test Runs: Perform dry runs without the spindle or laser turned on to verify the toolpath before committing to a full run.
• Regular Updates: Keep UGS updated to benefit from the latest features and bug fixes.

Conclusion

Universal G-Code Sender is an indispensable tool for anyone building or operating a DIY CNC machine. Its versatility, ease of use, and robust feature set make it an ideal choice for both hobbyists and professionals alike. By mastering UGS, you’ll have greater control over your CNC projects, enabling you to bring your creative visions to life with precision and efficiency.

So, whether you’re carving intricate designs or prototyping complex parts, Universal G-Code Sender will be your trusted companion in the world of CNC machining. Happy building and machining!
